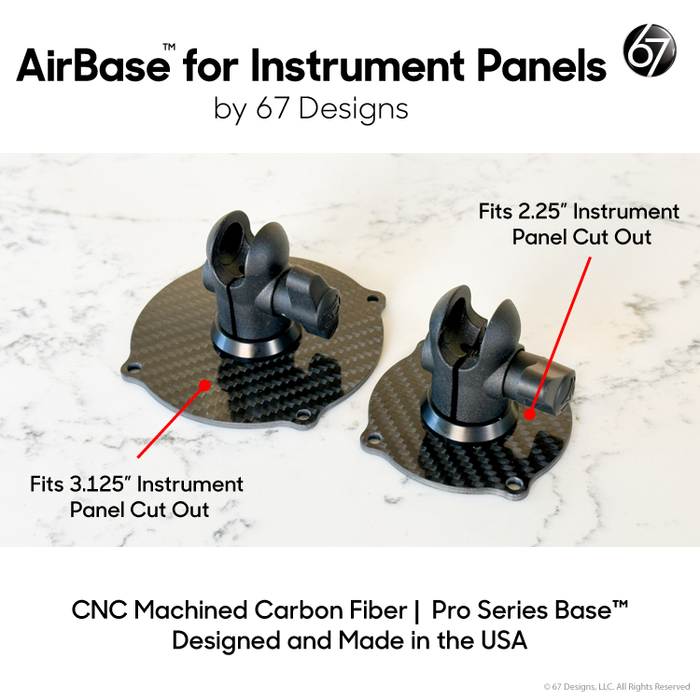

AirBase™ repurposes unused aircraft gauge openings into a secure mounting platform. The polished twill carbon fiber mount fits 3.125" or 2.25" panel cutouts and includes a Pro Series toothed base with die-cast aluminum hardware. Requires four mounting hardware (not included).
Benefits

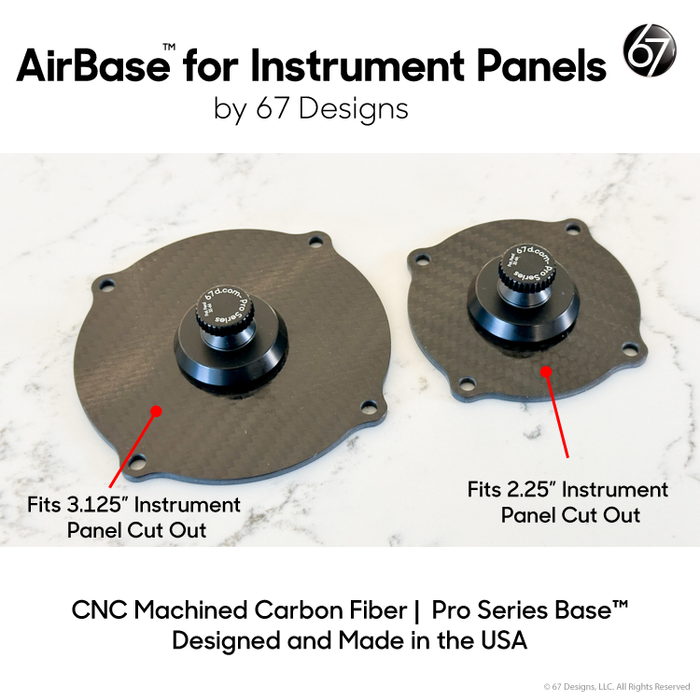

Industry standard to fit either the 3.125" or 2.250" inch Instrument Panel Cut Out (IPCO)
Lightweight and strong CNC machined polished carbon fiber Pro Series Base™.
Rapid installation.
Pro Series Bases™ internal anti-rotation provides 7x greater useful load compared to other clamp attachment points.
Can be used with a 67 Designs holder with a 20mm ball or the 67 Designs Ball2Ball™ Arms. (Sold separately).
Holders and devices shown in images are for example only. Holder and devices sold separately.
Check with Your A&P!
Always check with your A&P or maintenance shop on the appropriate placement of this product and how best to attach to your airframe.
Never install and mount an instrument that can in way cause the attached device to block any other instrument or control.
Installation Options

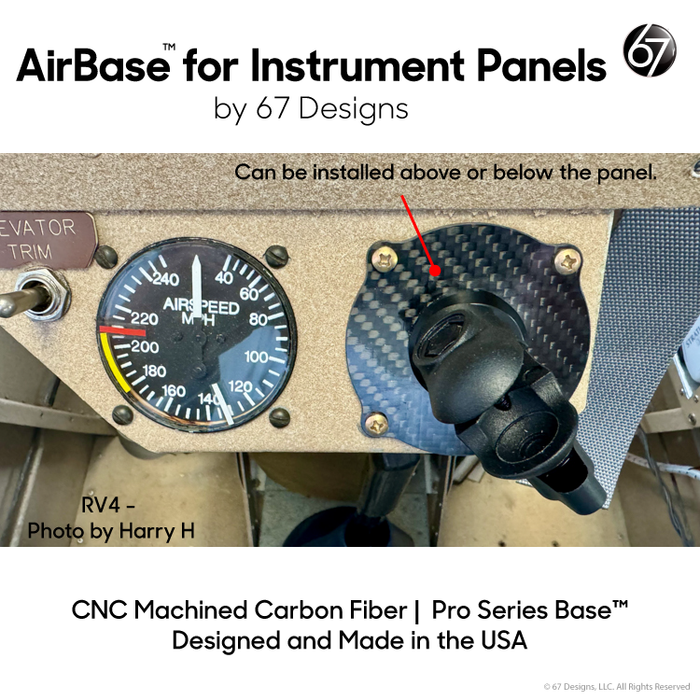

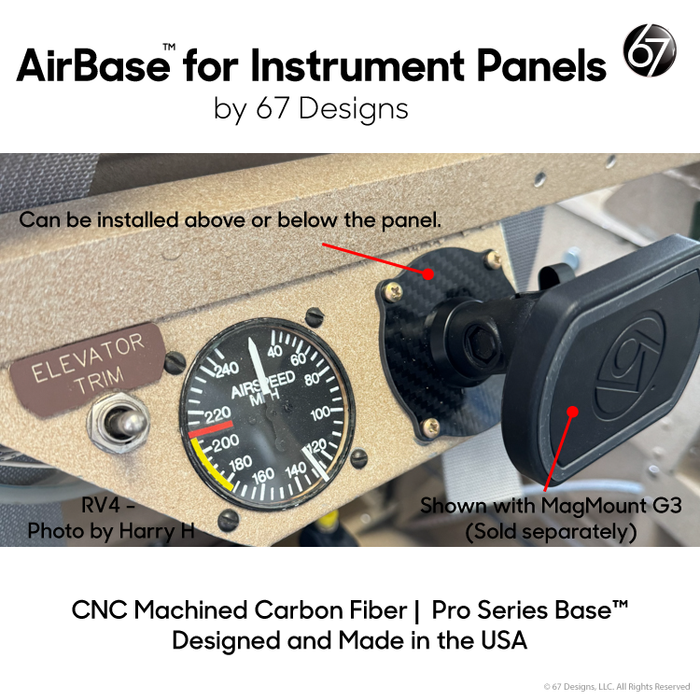

Access the aircraft panel and in a 'spare' industry standard instrument cut out install the appropriately sized base for the hole using your hardware.

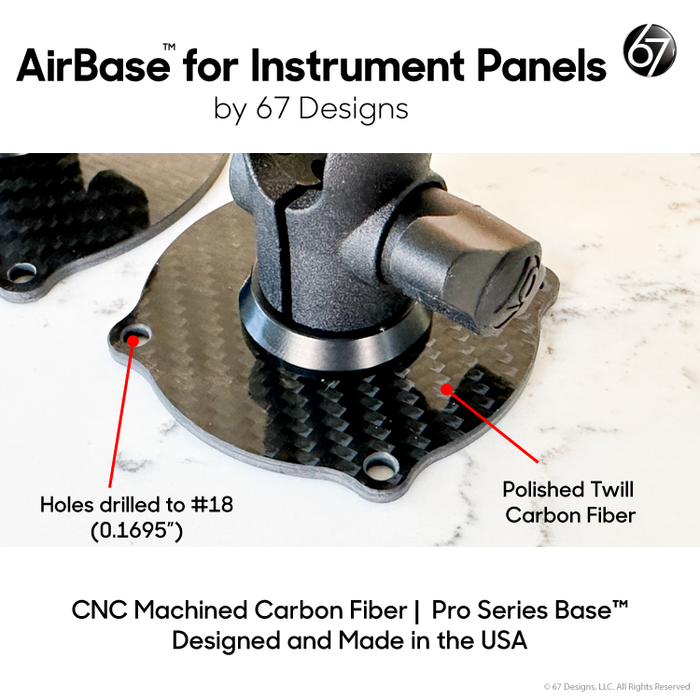

Each of the 4 x holes are drilled to a #18 (0.1695') hole for standard fasteners.
