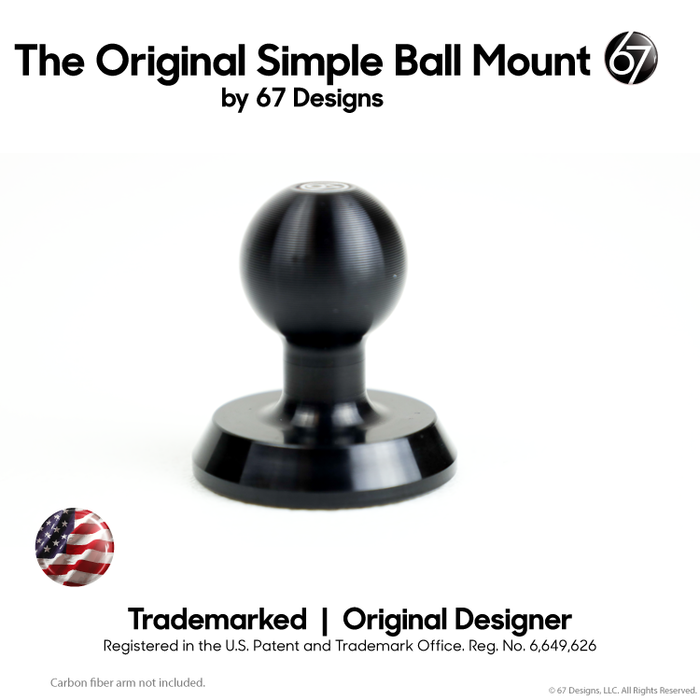

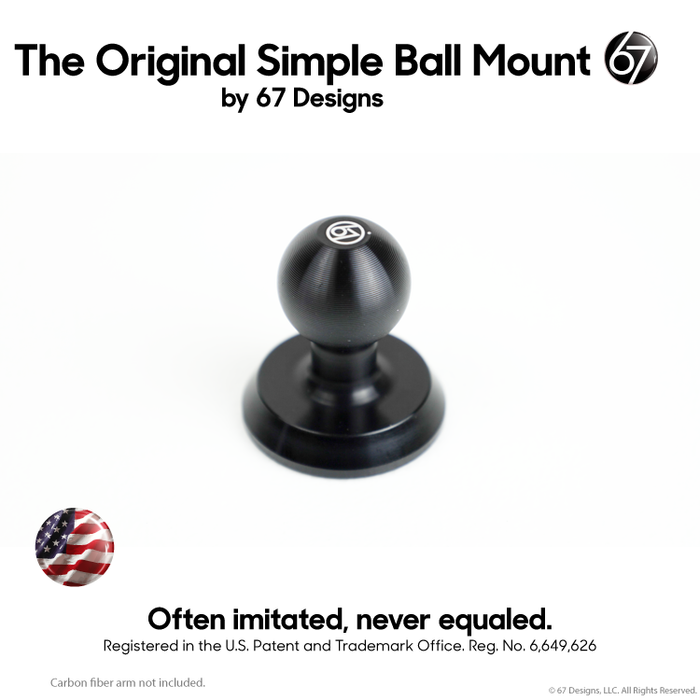

Simple Ball Mount

Example of installing the Simple Ball Mount by Mohawk Dave Off-Road on YouTube

Benefits

• All-in-one kit contains the original Simple Ball Mount, aluminum backing plate and 4mm x 0.7 - 8mm* stainless steel button cap fasteners.
• Metal ball for strength and durability - will not deform like plastic.
• Perfect for a growing army of inventors, designers and people that create their own mounts or those that 3D print their own device holders.

Product Details

• This utilizes 3 x 4mm threaded screws on a 20mm diameter. The outer diameter is 32mm.
• These mounts are perfect for a growing army of inventors, designers and people that create their own mounts or those that 3D print their own device holders.
• When used as a way to connect a device holder, this can be used with any fixed of jointed carbon fiber arm.
• Arms and other required components sold separately. In images for example only. Do not forget to add them to your cart!
• Registered in the U.S. Patent and Trademark Office. Reg. No. 6,649,626. All other Ball/Pedestal (Trade Dress) products of this design and not sold by 67 Designs are infringing on this Registered Trademark.

Design Specifications for Installation

• The 4mm threaded holes will accept a thread of not more than 4mm depth. Design you mating parts to work with the appropriate 4mm fastener of your choosing.

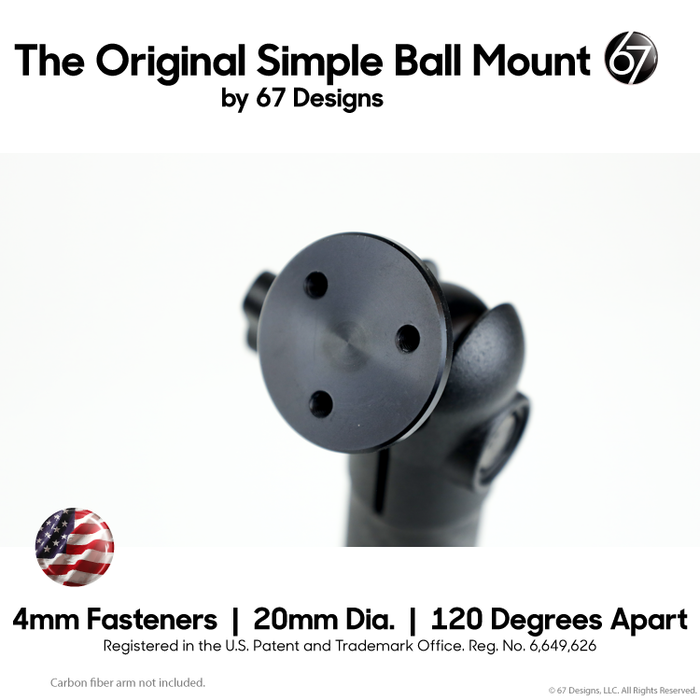

• The 4mm threaded holes are spread out 120 degrees apart on a 20mm diameter. The design prevents the base from turning in this configuration.

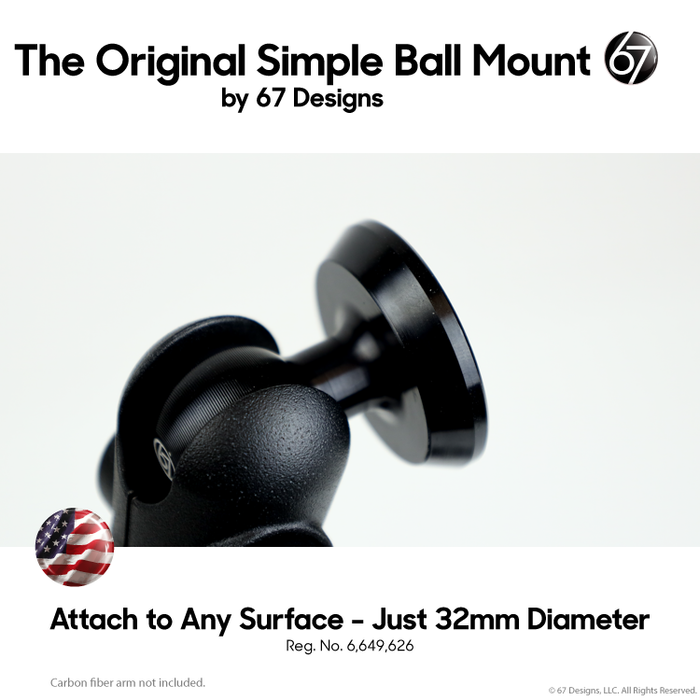

• The base is 32mm in diameter.

* If your specific installation requires different thread length to suit your design or situation, you will need to be purchase those from a local hardware store.
